01 digiQuark
Minimal Liquid Loss
Single Device
Real time scan
Muitiplex 5 channels
Auto Partition
Performance

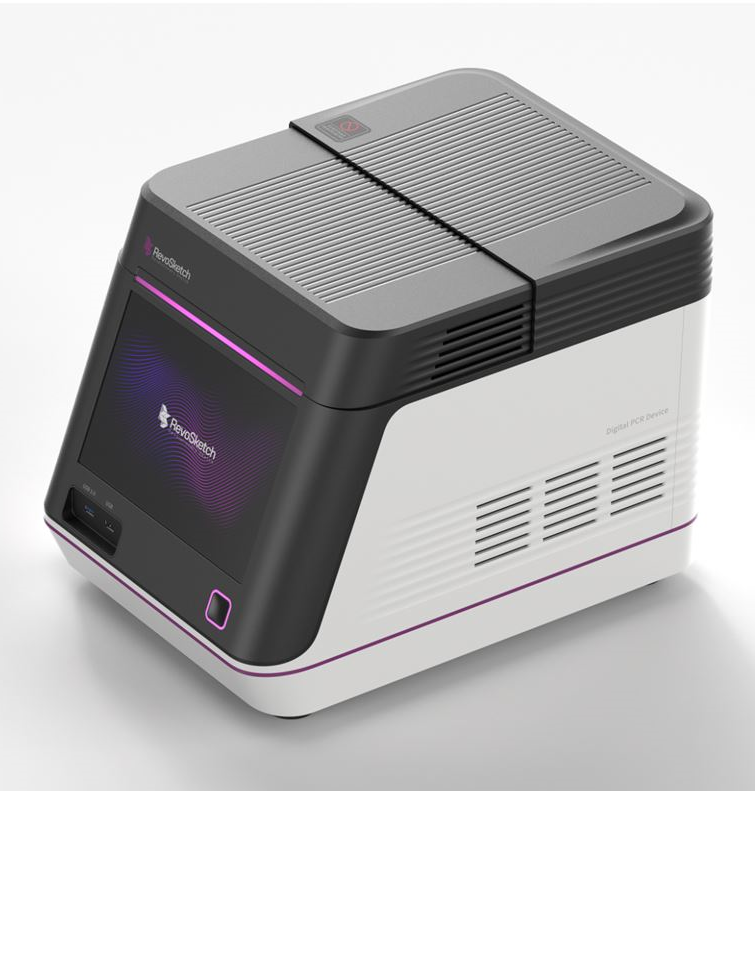

The DigiQuark is
a next-generation digital PCR platform available for automatic partitioning, thermal cycling (amplification) and fluorescence reading without additional unit by using the centrifugal force on the micro structure engraved inside the wall of PCR disk. In addition, it completely minimizes errors on the digital PCR by blocking the false positive with real-time scanning and PCR graph analysis.
Next Level digital PCR key features
Partitioning
- Automated partitioning with centrifugal force
- Adjustable 10K ~ 400M of partitions
Amplification
- Accurate and uniform temperature control
Detection
- Max 5um laser scan resolution
- Max 5 fluorescence detection channel
- Real time scan
SW & Analysis
- Real time graph analysis with ANN (Artificial Neural Network)
- Easy and powerful data analysis SW
Performance specification
| Performance | Optical multiplexing | CH (ROX used for reference) |
| FAM, Cy5, HEX, ROX, Quasar705 | ||
| Dynamic range | 5 logs | |
| Precision | ±10% | |
| Sample Reaction | Num of sample | 1 |
| Num of reaction well | 21k | |
| Well volume | 4.04nL | |
| Reaction volume | 85uL | |
| Emulsion oil | 3mL | |
| Analyzed well ratio | >95% |
System specification
| Dimension | 320mm(w) x 435mm(d) x 300mm(h) |
| Weight | Approx. 20kg |
| Temperature range | 40~98°C |
| Temperature accuracy | ±1.5°C (at 85°C) |
| Temperature uniformity | ±1.5°C (at 85°C) |
| Ramp rate | Avg. 0.3°C/s (60~95°C) |
| Illumination source | Laser diode (488nm, 520nm, 638nm) |
| Resolution | 10um (1/e2) |
| Detector | MPPC |
| Power input | 100-240 V, 50-60Hz |
| Power consumption | 500W |
| Connection | USB 2.0, 3.0 |
Environmental requirements
| Operating temperature and humidity | +15~+25°C, 20~80%RH |
| Storage temperature and humidity | -10~+40°C, 20~80%RH |
