Product
Overview
Isothermal PCR
Based on isothermal amplification technology, the isoQuarkF2 and isoQuarkM4 diagnose diseases
by maintaining samples at specific temperatures to amplify cells or infectious agents' nucleic acids (DNA or RNA).
The fluorescence detector confirms real-time amplification and detects fluorescent substances bound to genes.
Features

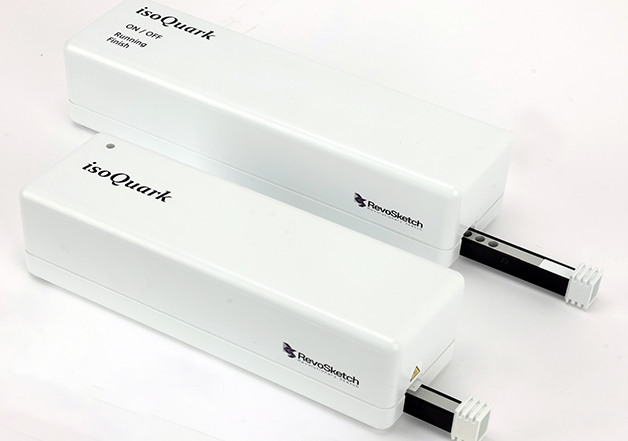

01 isoQuarkF2/M4
Rapid PCR results using isothermal amplification
Small size and weight suitable for on-site diagnostics
A simple GUI configuration using a tablet and Bluetooth
Capable of processing up to 16 wells
Supports detection of up to 2 channels
Supports detection of up to 4 channels
Performance
The isoQuarkF2/M4 is
Compact size and fast analysis function
Real-time gene amplificator equipment is recommended for small product size and use of space. It can be used for testing, analysis laboratory. You can also quickly see how DNA or RNA is displayed and analyzed in real-time.
Efficiency can be improved by conducting test and analysis processes used in the field.
Simple design and easy to use
Real-time gene amplificator is for use in research institutes, tests, laboratories, and on-site, small in size, and can be operated with a nice appearance.
isoQuark
| Model | isoQuarkF2™ | isoQuarkM4™ |
| Sample Number | 16 wells (2 x 8 strip tube) | 16 wells (2 x 8 strip tube) |
| Sample Volume | 10ul - 50ul | 10ul - 50ul |
| Hot top Temperature control | 80~100°C | 80~100°C |
| Heater Block Temperature control | 40~70°C | 40~70°C |
| Heater Block Temperature accuracy | ± 0.3°C (at 60°C) | ± 0.3°C (at 60°C) |
| Heater Block Temperature uniformity | ± 0.5°C (at 60°C) | ± 0.5°C (at 60°C) |
| Heating speed | 0.3°C/s | 0.3°C/s |
| Multiplexing | 2Ch (FAM/HEX) | 4Ch (FAM/HEX) |
| Power Adapter | Input : 100~240VAC (50/60Hz) Output : DC 24V, 3.75A (90W) |
Input : 100~240VAC (50/60Hz) Output : DC 24V, 3.75A (90W) |
| Dimension (WxDxH) | 263 x 80 x 80 | 303 x 80 x 80 |
| Weight (kg) | 0.7 Kg (w/o cables) | 0.75 Kg (w/o cables) |
| Data communication | USB or Bluetooth (2.4GHz) | USB or Bluetooth (2.4GHz) |
